iQ Dispense Valve

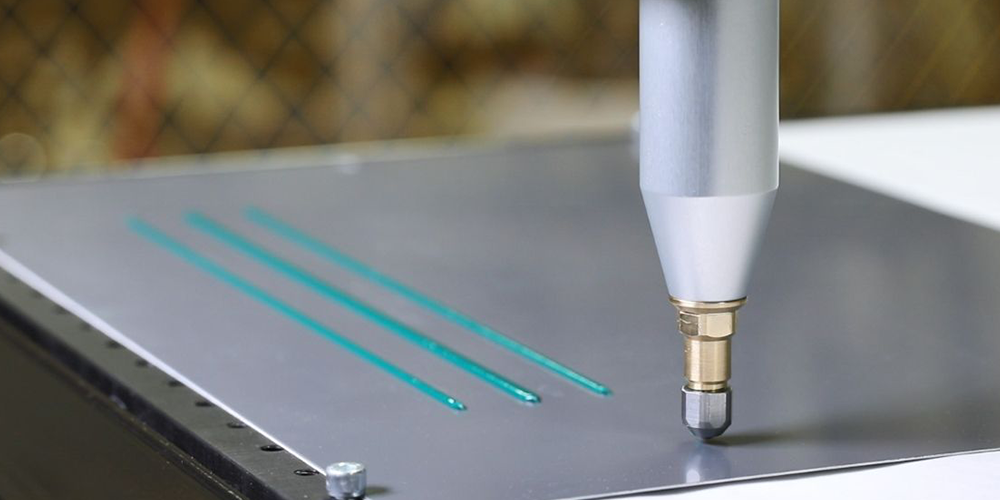

The iQ Tip Seal Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.
DOWNLOAD BROCHURE

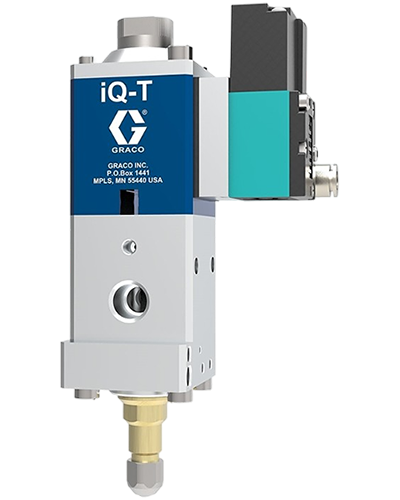

V25LT000BA
iQ Dispense Valve, Tip-Seal, Ambient, 0.157in (4.0mm) Tip, 0in (000mm) Nozzle, Direct Mount Solenoid
Specification :
- Air Inlet Size (in) : 5/16
- Air Inlet Thread Type : Push-to-Connect
- Ambient/Warm Melt/Hot Melt : Ambient
- Applicator Type : Tip-Seal
- Component Type : Single Component
- Construction : Aluminum, UHMWPE, 17-4 Stainless Steel, PEEK, Chemical Resistant O-Rings, CA 360 Brass, Coated Tool Steel, 440C Stainless Steel
- Fluid Inlet Size (in) : 1/4
- Fluid Inlet Thread Gender : Female
- Fluid Inlet Thread Type : NPT
- Gun Activation : Automatic
- Maximum Air Pressure (bar) : 8.3
- Maximum Air Pressure (psi) : 120
- Maximum Fluid Pressure (bar) : 276
- Maximum Fluid Pressure (psi) : 4000
- Mount Location : Direct Mount Solenoid
- Nozzle Size (mm) : 4.0
- Outlet Block Length (mm) : NA
- Solenoid Valve Voltage Rating (V dc) : 24
- Weight (kg) : 1.0
