E-ROBOT+3 RULE THE SPEED
E-ROBOT+3 Series ensures that you always get the same quality, fast and precise painted products. It increases production efficiency and saves energy and paint.
DOWNLOAD BROCHURE
E-ROBOT+3 X
E-ROBOT+3 X is a horizontal axis coating robot developed for your automatic guns. This robot performs forward and backward movements precisely and efficiently, demonstrating superior performance even under difficult conditions such as sudden speed changes and high torque requirements. Its timing belt and special chassis design offers long-lasting use and easy maintenance.
Specification :
- Reliable and precise motion control
- Stroke lengths ranging from 1000-1500 mm
- Flexible operating modes with Oscillation and Position modes
- User-friendly interface for remote speed, stroke and acceleration adjustment
- Precise movement for smooth and homogeneous painting
- Perfect balance with counterweight
- E-SENSE+3 compatibility
- Load capacity up to 50 kg

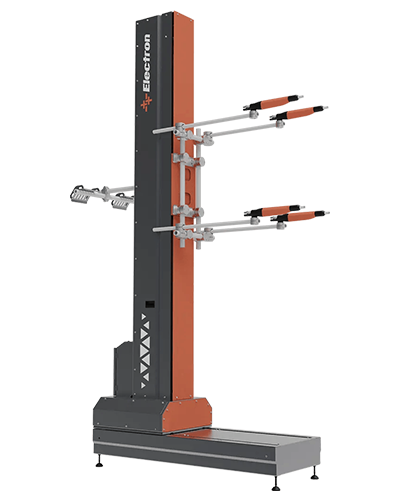

E-ROBOT+3 Z
E-ROBOT+3 Z is a vertical axis coating robot designed for your automatic guns. This robot performs high-efficiency painting by providing precise vertical movement at the specified speed and rotational acceleration. With its smart mechanism and asynchronous motor, it offers excellent repeatability even under challenging conditions. Thanks to its timing belt design, it provides long-lasting use and easy maintenance advantages.
Specification :
- Reliable and precise motion control
- Stroke lengths ranging from 1200-2700 mm
- Flexible operating modes with Oscillation and Position modes
- User-friendly interface for remote speed, stroke and acceleration adjustment
- Precise movement for smooth and homogeneous painting
- Perfect balance with counterweight
- E-SENSE+3 compatibility
- Load capacity up to 50 kg

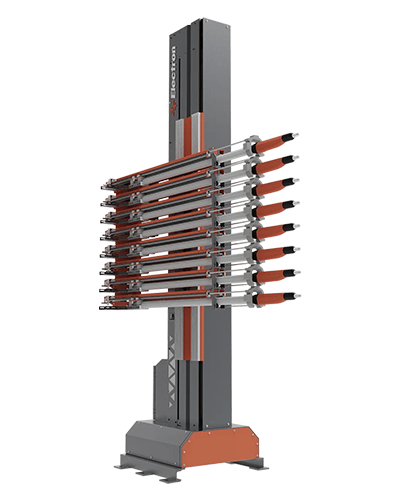

E-ROBOT+3 3D
E-ROBOT+3 3D is a vertical axis painting robot integrated with a high-tech contour detection system. This robot performs precise vertical movements according to the data provided by the E-SENSE+3 part detection system and works integrated with E-ROBOT+3 AXIS independent gun systems. It offers low maintenance requirements along with high carrying capacity, precise position and speed control features.
Specification :
- Space-saving slim column design.
- 130 mm vertical gun spacing optimizes coverage areas.
- Integrated serial communication technology for performance monitoring and feedback.
- Up to 14 kg payload capacity for each independent axis.

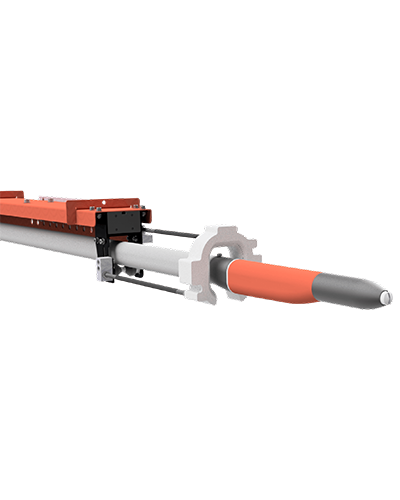

E-ROBOT+3 AXIS
E-ROBOT+3 AXIS is a single gun movement system designed for parts with complex geometries that require high precision and homogeneous coating quality in the painting process. It is equipped with a high-tech servo motor and timing belt movement mechanism, which gives its system smooth and repeatable movement capability.
Specification :
- Motion system designed for smooth inner surface and linear flow.
- Precise servo control at variable speeds.
- Perfect coating processes with high repeatability.
- E-AXIS+3 integration for up to a maximum of 8 guns.
- Quiet and smooth operation with toothed belt.
- Ability to work effectively in long and short strokes.
