Ultra-Lite Flow Gun
Maximize production and material performance with our complete range of 1K Ultra-Lite Applicator & Dispense Valves from Graco. These lightweight valves were designed for durability and long service life for a multitude of bead dispense applications.
DOWNLOAD BROCHURE
235628

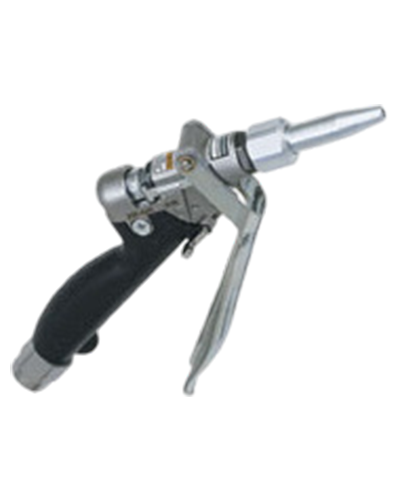

Ultra-Lite 6000 Flow Gun with Ball End Valve Needle
Specification :
- Application : Bonding, Sealing, Gasketing, Potting, Encapsulation Connection Type : Threaded, Flange
- Gun Activation : Manual
- Inlet Size (in) : 1/4
- Inlet Thread Gender : Female
- Inlet Thread Type : NPT
- Maximum Working Pressure (bar) : 415
- Maximum Working Pressure (kg/cm²) : 422
- Maximum Working Pressure (psi) : 6000
- Model : Ultra-Lite
- Nozzle Size (mm) : 4.826
- Number of Outputs : 1
- Series : 4000
- Type : Dispense Gun
- Weight (kg) : 0.62
235627

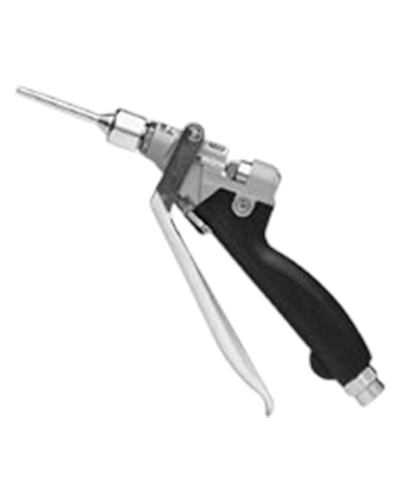

Ultra-Lite 4000 Flow Gun
Specification :
- Application : Bonding, Sealing, Gasketing, Potting, Encapsulation Connection Type : Threaded, Flange
- Gun Activation : Manual
- Inlet Size (in) : 1/4
- Inlet Thread Gender : Female
- Inlet Thread Type : NPT
- Maximum Working Pressure (bar) : 280
- Maximum Working Pressure (kg/cm²) : 281
- Maximum Working Pressure (psi) : 4000
- Model : Ultra-Lite
- Number of Outputs : 1
- Series : 4000
- Type : Dispense Gun
