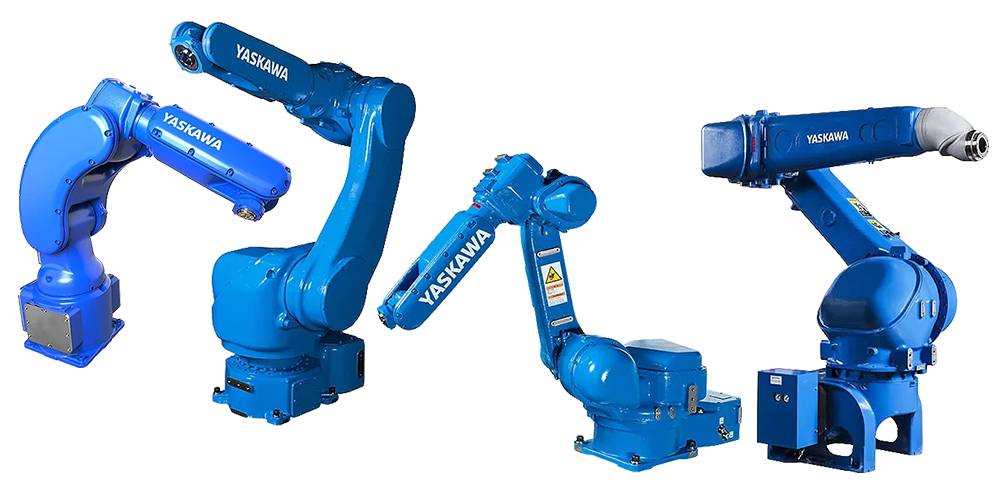

MPX Series Painting Robots
Flexible, high-performance Motoman paint robots increase finishing quality, consistency and troughtput, while dramatically lowering operating costs and decreasing wasted material.
DOWNLOAD BROCHURE

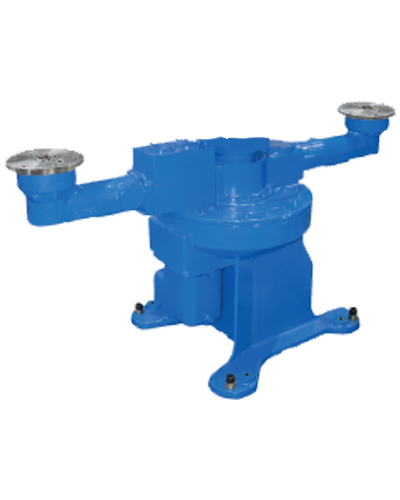

Motofeeder II
High-quality painting package easily automates painting of large, complex workpieces
Specification :
- A long arm with a table pitch of 2600 mm

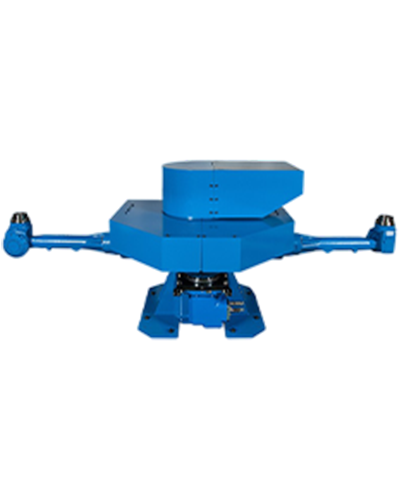

Motofeeder
High-quality painting package easily automates painting of large, complex workpieces
Specification :
- A long arm with a table pitch of 2600 mm

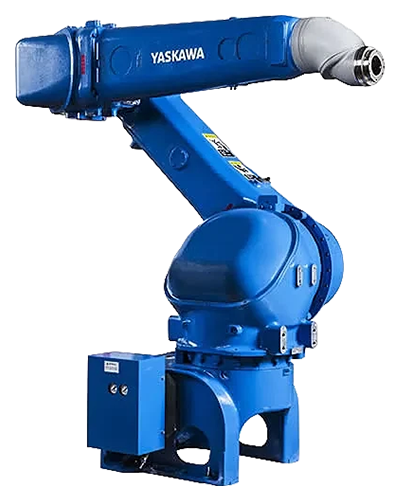

MPX3500
The MPX3500 is a high-speed, compact six-axis robot ideal for painting contoured parts such as interior/exterior surfaces. Its hollow wrist design has an inside diameter of 70 mm, making it well-suited for mounting spray equipment applicators. Offers superior performance and creates smooth, consistent finish with outstanding efficiency for painting and dispensing applications. Can be floor, wall or ceiling mounted for layout flexibility.
Specification :
- Payload : 15.0 Kg
- Controller : DX200
- Horizontal Reach : 2700 mm
- Vertical Reach : 5095 mm

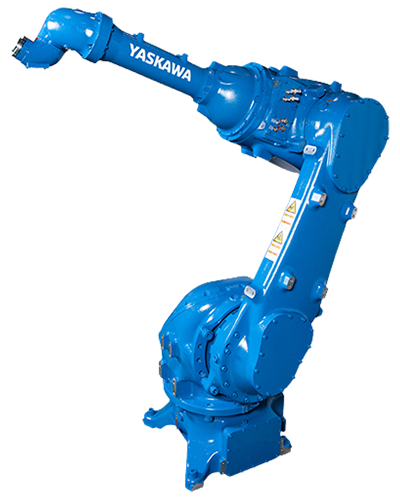

MPXL2600
Providing smooth, consistent finishes with outstanding efficiency for painting and dispensing applications, the extremely reliable six-axis MPXL2600 robot is ideal for coating contoured parts such as interior/exterior surfaces. Available with a lemma wrist, this robot has an inside diameter of 70 mm, making it well-suited for mounting spray equipment applicators. Robot is Factory Mutual approved for use in Class I, Div. 1 hazardous environments, and can be floor-, wall- or ceiling-mounted for layout flexibility.
Specification :
- Payload : 10.0 Kg
- Controller : DX200-FM
- Horizontal Reach : 2100 mm
- Vertical Reach : 3844 mm

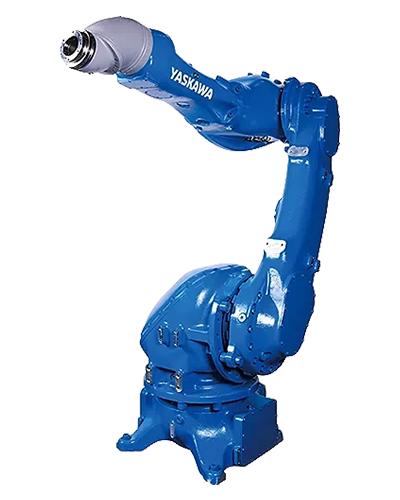

MPX2600
The MPX2600 is a high-speed, compact six-axis robot ideal for painting contoured parts such as interior/exterior surfaces. Its hollow wrist design has an inside diameter of 70 mm, making it well-suited for mounting spray equipment applicators. Offers superior performance and creates smooth, consistent finish with outstanding efficiency for painting and dispensing applications. Can be floor, wall or ceiling mounted for layout flexibility.
Specification :
- Payload : 15.0 Kg
- Controller : DX200
- Horizontal Reach : 2000 mm
- Vertical Reach : 3643 mm

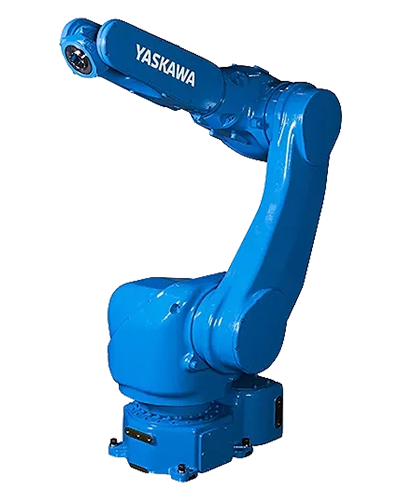

MPX1950
Optimized for painting small- to medium-sized parts and dispensing applications, the high speed six-axis MPX1950 robot creates a smooth, consistent finish with outstanding efficiency. A small footprint and slim arm design allow for minimum installation space, and a reduced interference envelope enables painting of workpieces closer to the robot.
Specification :
- Payload : 7.0Kg
- Controller : DX200
- Horizontal Reach : 1450 mm
- Vertical Reach : 2730 mm

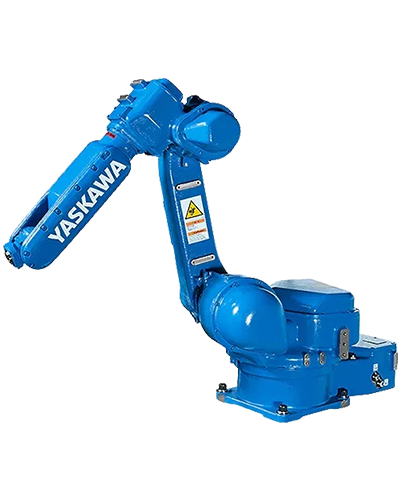

MPX1400
Optimized for painting smaller components, the six-axis MPX1400 robot offers outstanding performance for coating and dispensing applications. Its small footprint slim-arm construction allows for minimum installation space, and a broad motion range facilitates painting multiple parts at the same time. Factory Mutual (FM) approved for Class I, Div. 1 use in hazardous environments, this extremely fast and precise robot features a strait wrist with a 5 kg payload, as well as high allowable moment ratings, making it ideal for mounting a variety of spray guns and small bells.
Specification :
- Payload : 5.0Kg
- Controller : DX200-FM
- Horizontal Reach : 1256mm
- Vertical Reach : 1852 mm

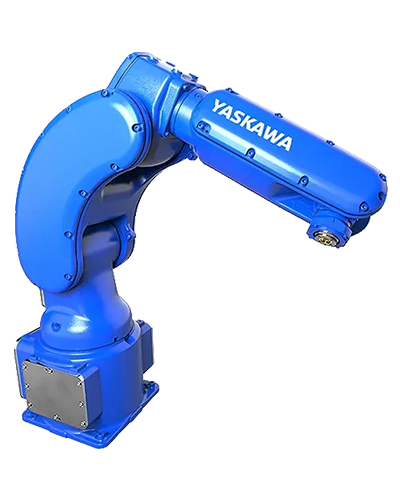

MPX1150
The MPX1150 is a high-speed, compact six-axis robot ideal for painting contoured parts such as interior/exterior surfaces. Offers superior performance and creates smooth, consistent finish with outstanding efficiency for painting and dispensing applications. Can be floor, wall or ceiling mounted for layout flexibility.
Specification :
- Payload : 5.0Kg
- Controller : DX200-FM
- Horizontal Reach : 727 mm
- Vertical Reach : 1290 mm
