AODD Pump
Chemsafe
Graco's ChemSafe pumps feature PTFE or UHMWPE corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals. There's no exposed metals and they can be configured in various materials to meet most abrasion, temperature, and chemical compatibility requirements.
Product Details
24X423

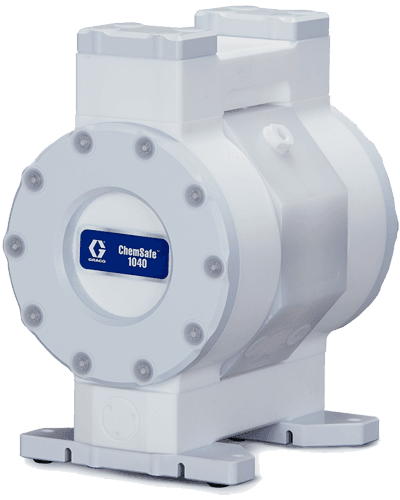

ModelChemSafe 1040 Air Operated Double Diaphragm Pump with PTFE Seat, PTFE Ball, Overmolded PTFE Diaphragm, PTFE Fluid Path & NPT Port
- Air Inlet Size
- 1/4" Female NPT
- Fluid Inlet/Outlet Size
- 1" Female NPT
- Maximum Air Pressure
- 7 bar / 100 psi
- Maximum Fluid Pressure
- 7 bar / 100 psi
- Maximum Flow Rate
- 148 L/min
- Maximum Cycle Rate
- 260 CPM
- Operating Temperature Range
- 0–100°C
- Manifold Configuration
- Center Port
- Standards
- CE
