Oil & Grease Pumps
Fire-Ball
Since 1956, Graco Fire-Ball® pumps and packages have been a mainstay in the lubrication marketplace for durability and long life. Designed for the toughest applications, the Fire-Ball brand repeatedly outperforms and outlasts the competition.
Models (4)

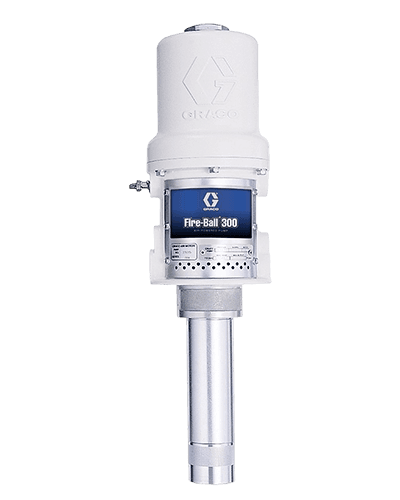

203876
ModelFire-Ball® 300 Series 5:1 Universal Size Oil Pump
- Air Inlet
- 3/8" NPT female
- Fluid Inlet
- 1-1/2" NPT female
- Fluid Outlet
- 1/2" NPT female
- Maximum Working Pressure
- 900 psi (62 bar)
- Cycles per Gallon
- 30
- Maximum Cycle Rate
- 70 cpm
- Materials
- Steel, polyurethane, aluminum, Buna-N
- Application
- Petroleum and synthetic-based oils

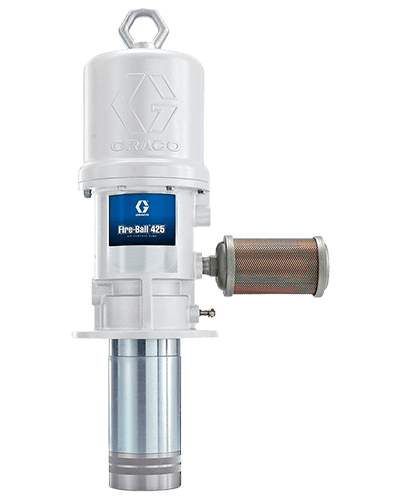

237526
ModelFire-Ball® 425 Series 3:1 Universal Size Oil Pump
- Air Inlet
- 0.5" NPT female
- Fluid Inlet
- 1-1/2" NPT female
- Fluid Outlet
- 3/4" NPT female
- Maximum Working Pressure
- 540 psi (37 bar)
- Cycles per Gallon
- 6
- Maximum Cycle Rate
- 66 cpm
- Materials
- Steel, polyurethane, aluminum, nitrile

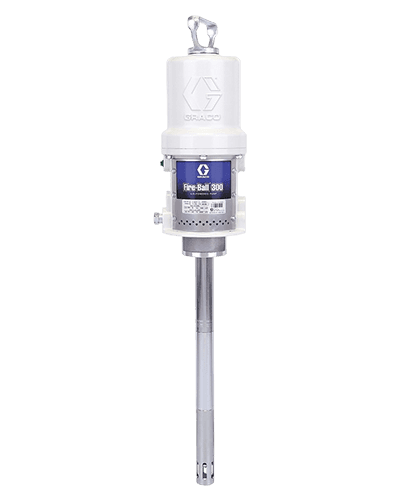

239877
ModelFire-Ball® 300 Series 50:1 16 or 32 kg Pail Grease Pump
- Air Inlet
- 3/8" NPT female
- Fluid Outlet
- 1/4" NPT female
- Maximum Working Pressure
- 8,400 psi (58 MPa)
- Maximum Cycle Rate
- 76 cpm
- Application
- Grease handling (pail)
239888
ModelFire-Ball® 300 Series 50:1 400 lb (180 kg) Grease Pump
- Air Inlet
- 3/8" NPT female
- Fluid Outlet
- 1/4" NPT female
- Maximum Working Pressure
- 8,400 psi (580 bar)
- Cycles per Gallon
- 345
- Maximum Cycle Rate
- 76 cpm
- Application
- Large-scale grease distribution
