HOSE REELS
Graco's family of heavy duty industrial hose reels are designed for applications from small shops to large car and truck dealerships, even construction equipment and fleet maintenance shops. Engineered to handle common shop fluids: lubricating grease, petroleum and synthetic-based oils, hydraulic fluids, transmission fluids, gear oils, air, water, windshield wash fluid and diesel exhaust fluids.
Models (4)

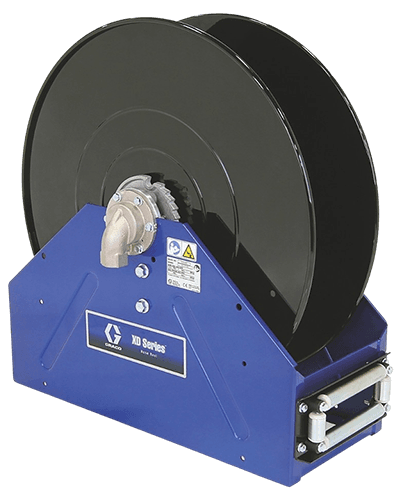

24P320
ModelXD40™, Oil, 1 in. (25 mm) Inlet, Bare Reel (1 in. × 50 ft. Capacity), NPT, Truck/Bench Only, Metallic Blue
- Application
- Oil
- Hose ID
- 1 in
- Hose Length
- 15 m
- Type
- Spring-Rewind
- Max Pressure
- 2000 psi
- Inlet/Outlet
- 1 in. NPT
- Mount
- Truck or Bench
24P467
ModelXD50™, Diesel Fuel, 1-1/2 in. (13 mm) Inlet, Bare Reel (1-1/2 in. × 50 ft. Capacity), NPT, Metallic Blue
- Application
- Diesel Fuel
- Hose ID
- 1.5 in
- Hose Length
- 15 m
- Type
- Spring-Rewind
- Max Pressure
- 600 psi
- Inlet/Outlet
- 1.5 in. NPT
- Rated
- Indoor/Outdoor
XDM65B
ModelXDX™ 20, Oil, 1/2 in (13 mm) Inlet, 1/2 in × 50 ft (13 mm × 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue
- Application
- Oil
- Hose ID
- 0.5 in
- Hose Length
- 15 m
- Type
- Spring-Rewind
- Max Pressure
- 2000 psi
- Design
- Dual pedestal with hose

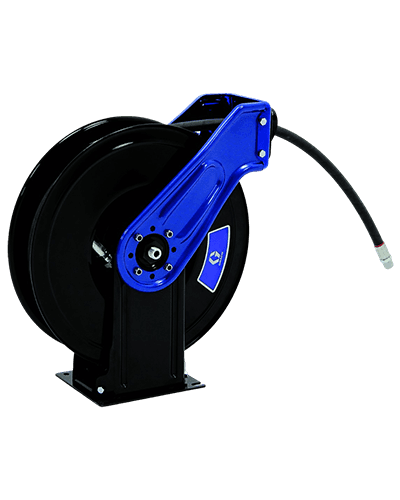

XDH55B
ModelXDX™ 20, Grease, 1/2 in (13 mm) Inlet, 3/8 in × 50 ft (10 mm × 15 m) Hose, NPT, Truck/Bench Mount, Metallic Blue
- Application
- Grease
- Hose ID
- 0.375 in
- Hose Length
- 15 m
- Type
- Spring-Rewind
- Max Pressure
- 4800 psi
- Temperature Range
- -40°C to 93°C
- Design
- Dual pedestal with hose
