Pulse Pro
Graco's Pulse® Pro Fluid Management system is an innovative wireless fluid management system for vehicle and fleet service. The Pulse Pro system provides forward-thinking service operations with the insight, control and analytics needed to simplify decisions and drive profitability.
Models (5)
25D454

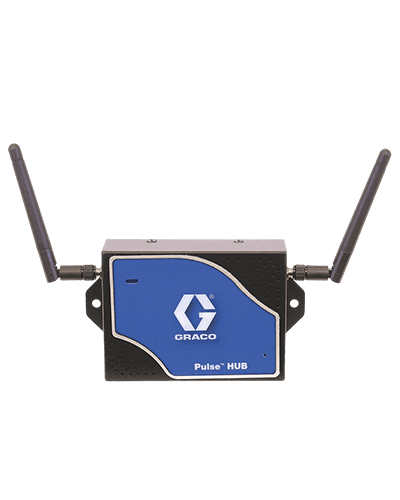

ModelPulse® Hub (EU) — Graco's intuitive software for Pulse® Fluid Management has been custom developed to control every component within the Pulse network.
- Maximum Voltage
- 240 VAC
- Maximum Operating Temperature
- 70°C
- Dimensions
- 114.3 × 82.6 × 32.5 mm
- Weight
- 0.45 kg
- Includes
- 3 antennas, universal power supply
25D121

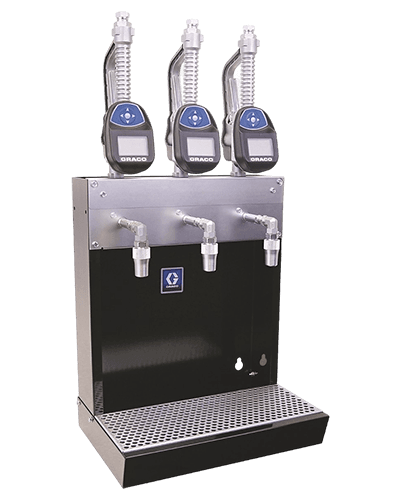

ModelPulse® Oil Bar Console — Oil bar console kit includes sheet metal enclosure components and drain pan.
- Maximum Working Pressure
- 630 kPa
- Drain Hose Size
- 0.75" / 19.05 mm
- Overall Height
- 574.04 mm
- Overall Length
- 337 mm
- Weight
- 13.61 kg
25M323

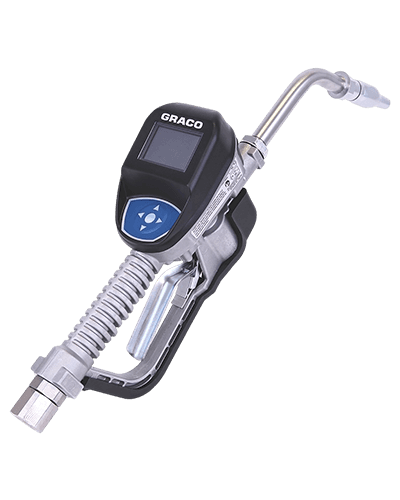

ModelPulse® Metered Dispense Valve for Oil Applications — 1/2 in NPT, Rigid Extension, High Flow Nozzle
- Display
- LCD
- Maximum Working Pressure
- 103.4 bar / 1500 psi
- Meter Accuracy
- ±0.5%
- Meter Technology
- Oval Gear
- Weight
- 2.4 kg
- Minimum Flow Rate
- 0.9 l/min
- Temperature Range
- -16°C to 70°C
24Z676

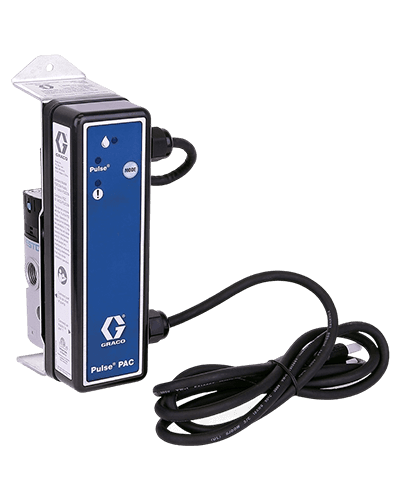

ModelPulse® Pump Air Control — NPT with 6 ft. SJOOW, 3-Wire, 18-Gauge Cable with Flying Leads
- Maximum Operating Pressure
- 145 psi
- Minimum Operating Pressure
- 36 psi
- Power Supply
- 100-240 VAC
- Frequency
- 2.4 Hz
25D948

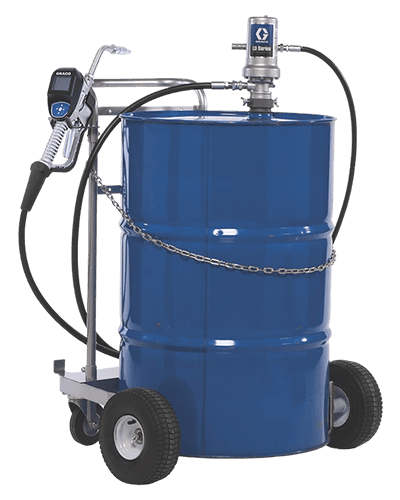

ModelPulse® Roll-Around Package — Meter with Rigid Extension
- Maximum Working Pressure
- 52 bar / 750 psi
- Type
- Dispense Package
