Electric Double Diaphragm Pumps
QUANTM HYGIENIC
The Graco QUANTM Electric double diaphragm (EODD) pump is revolutionary for end users. It's quiet, clean, safe and powerful. It drives immediate, sustained and highly measurable energy savings, helping users meet sustainability goals.
Models (3)

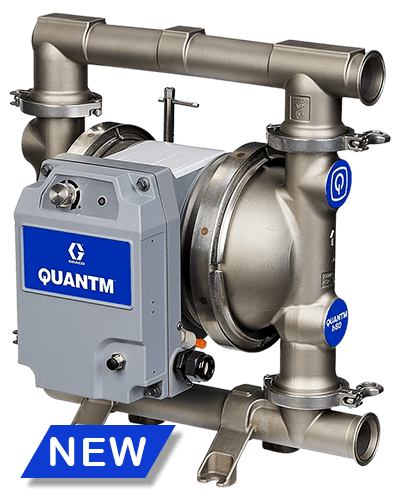

HE120-0001
ModelQUANTM h120, 2" FG SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, CW Ball, PS Diaphragm
- Flow Rate
- 454 L/min maximum
- Maximum Fluid Pressure
- 4.14 bar (60 psi)
- Temperature Range
- -40°C to 82°C
- Voltage
- 200-240 VAC 3-phase
- Solid Passage
- 6.35 mm
- Connection
- 2.5" Tri-Clamp
- Material
- 316L/316 stainless steel
- Certifications
- FDA Compliant, 3A

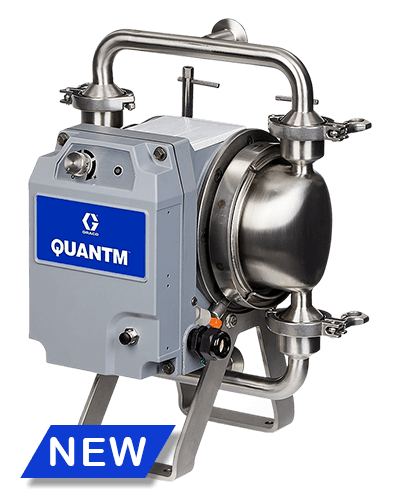

HE30-0754
ModelQUANTM h30, 1" Tri-clamp, HS SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, PT Ball, PO Diaphragm
- Flow Rate
- 114 L/min maximum
- Maximum Fluid Pressure
- 6.9 bar (100 psi)
- Temperature Range
- -40°C to 82°C
- Voltage
- 200-240 VAC 3-phase
- Solid Passage
- 10.7 mm
- Approvals
- Class 1 Division 1, ATEX, IECEx
- Material
- 316L stainless steel

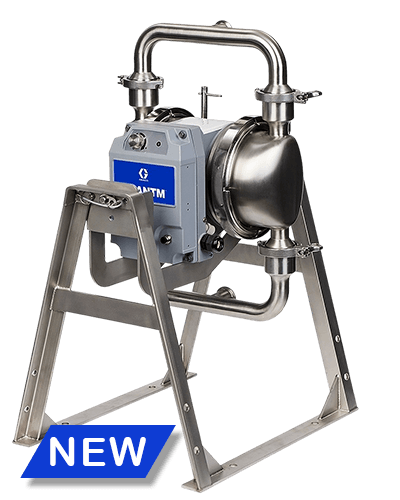

HE120-0101
ModelQUANTM h120, 2" Tri-clamp, 3A SST Electric Diaphragm Pump, 200-240 V, FEP AL Center, SS Seat, PT Ball, PO Diaphragm
- Flow Rate
- 454 L/min maximum
- Maximum Fluid Pressure
- 4.14 bar (60 psi)
- Temperature Range
- -40°C to 82°C
- Voltage
- 200-240 VAC 3-phase
- Solid Passage
- 12.7 mm
- Certifications
- 3A and FDA Compliant
- Material
- 316L stainless steel
