Air-operated Diaphragm
TRITON
Graco's Triton Pump Package is durable, requires little maintenance, plus it delivers a consistent spray pattern and uniform film thickness.
Models (3)
233473
ModelTriton Aluminum Pump Package, stand mount with suction hose. Does not include applicator.
- Maximum Air Pressure
- 7 bar (100 psi)
- Maximum Flow Rate
- 32 L/min
- Pump Ratio
- 1:1
- Weight
- 9 kg
- Mount
- Stand

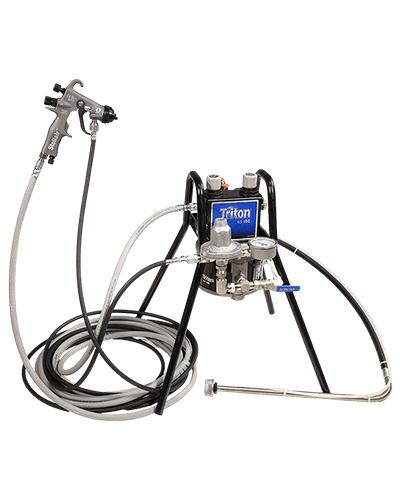

233475
ModelTriton Alum Spray Package, Stand, Suction, Air & Fluid Hoses, Stellair Conventional Gun .055 in (1.4 mm) Nozzle for Metal Applications
- Maximum Air Pressure
- 7 bar (100 psi)
- Maximum Flow Rate
- 32 L/min
- Pump Ratio
- 1:1
- Weight
- 9 kg
- Includes
- Stellair gun, 25 ft air hose, 25 ft fluid hose
- Compatible Materials
- CARC, enamel, epoxies, latex, lacquer, metallics, primers, varnish

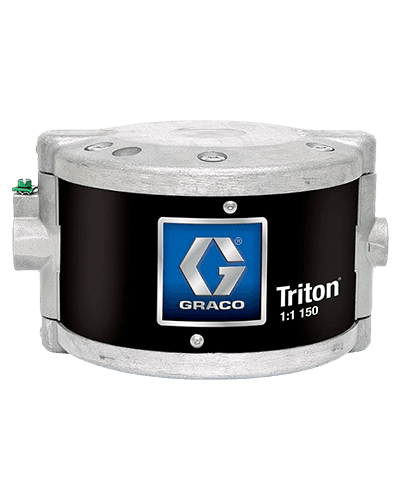

233500
ModelTriton 308 — Triton Air-Operated Diaphragm Pump, Bare, Aluminium, NPT
- Air Inlet
- 1/4" NPT
- Fluid Inlet
- 3/4" NPT
- Fluid Outlet
- 3/8" NPT
- Maximum Air Pressure
- 8 bar (115 psi)
- Maximum Fluid Pressure
- 8 bar (115 psi)
- Maximum Flow Rate
- 32 L/min
- Operating Temperature
- 10–80°C
- Pump Ratio
- 1:1
- Standards
- ATEX, CE
