Composite Hose

MEIJIFLEX

Our hoses are called COMPOSITE HOSE, with multi-layers plastic films, tubes, clothes, and spiral wires. This structure delivers excellent performance through safety, wide chemical resistance, light and flexible construction, high flexibility, and high durability for repeated bending.

Ask About This Product Download Product Line Brochure ← All MEIJIFLEX Products

Models (3)

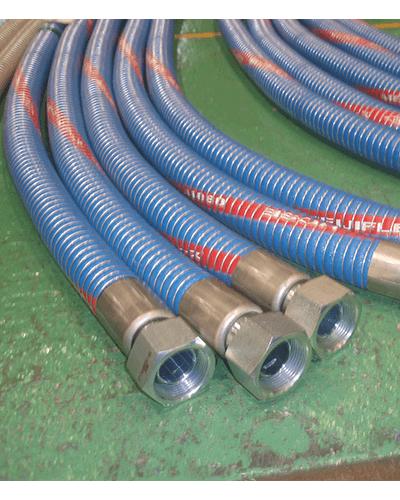

0901F

Model

Oil and Solvent Hose — A wide range of applications that include gasoline, heavy oil, lubricant, animal and vegetable oil, BTX, ketone, thinner, ink, paint, and alcohol.

Available Inner Dia.: 1/2", 3/4", 1", 1-1/2", 2", 2-1/2"
Max. Pressure: 1.4 MPa
Max. Product Length: 12–20 m
Applications: Gasoline, heavy oil, lubricant, BTX, ketone, thinner, ink, paint, alcohol

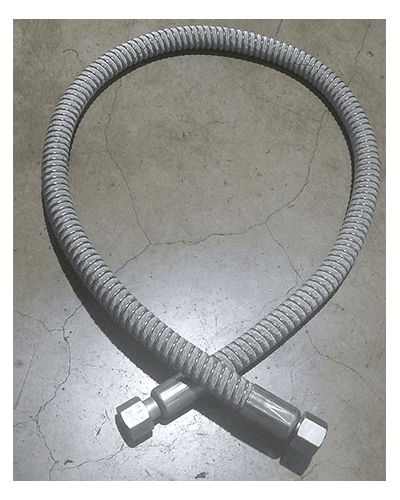

0901F-S

Model

Chemical Hose — A wide range of applications that include gasoline, heavy oil, lubricant, animal and vegetable oil, BTX, ketone, thinner, ink, paint, and alcohol.

Available Inner Dia.: 1/2", 3/4", 1", 1-1/2", 2", 2-1/2"
Max. Pressure: 1.4 MPa
Max. Product Length: 12–20 m
Applications: Gasoline, heavy oil, lubricant, BTX, ketone, thinner, ink, paint, alcohol

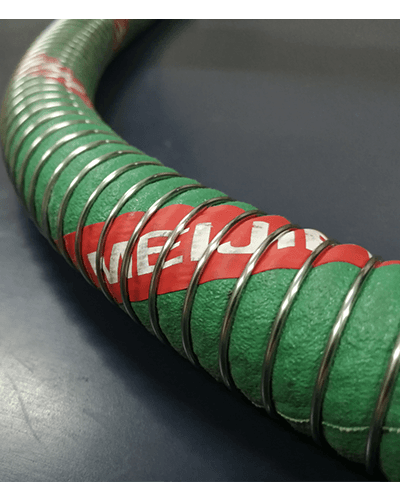

0969F-S

Model

Cargo Hose — Multi-purpose hose for general use with abrasive and volatile chemicals. Achieves lower pressure loss and permits easier cleaning due to a newly-developed smooth inner surface.

Available Inner Dia.: 4", 4-1/2", 5", 6"
Max. Pressure: 1.0 MPa
Max. Product Length: 15–20 m
Applications: General use with abrasive and volatile chemicals
