Sealing & Handling Robots

GP Series

Yaskawa Motoman has delivered game-changing results for customers of all sizes and industries by providing a singular resource for industrial and collaborative robots, process expertise, as well as integration and service support.

Ask About This Product← All YASKAWA Products
GP Series

Models (2)

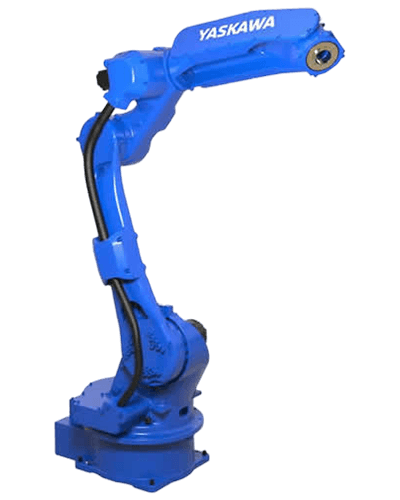

GP25

GP25

Model

The MOTOMAN GP25 is a compact and flexible handling robot which provides a payload of 25 kg.

Controlled Axes
6
Payload
25 kg
Max Working Range
1730 mm
Repeatability
0.06 mm
Weight
250 kg
Power Supply
2 KVA
S Axis
210°/sec
L Axis
210°/sec
U Axis
265°/sec
R Axis
420°/sec
B Axis
420°/sec
T Axis
885°/sec
Download Model Brochure

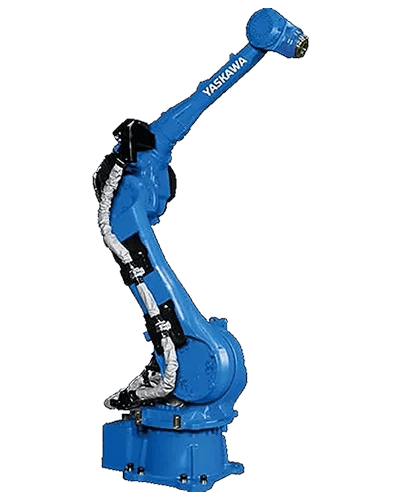

GP50

GP50

Model

Offering high speeds and mounting flexibility for a large range of applications, the GP50 long reach robot offers outstanding performance for increased production output. Fast axis speeds decrease cycle time, while high moment and inertia ratings support large and heavy payloads.

Controlled Axes
6
Payload
50 kg
Repeatability
0.07 mm
Weight
570 kg
Power Supply
4 KVA
S Axis
180°/sec
L Axis
187°/sec
U Axis
187°/sec
R Axis
250°/sec
B Axis
250°/sec
T Axis
360°/sec
Download Model Brochure
