Painting Robots

MPX Series

Flexible, high-performance Motoman paint robots increase finishing quality, consistency and throughput, while dramatically lowering operating costs and decreasing wasted material.

Ask About This Product← All YASKAWA Products
MPX Series

Models (8)

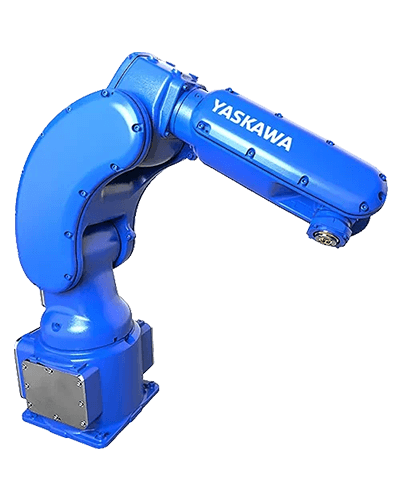

MPX1150

MPX1150

Model

High-speed, compact six-axis robot ideal for painting contoured parts such as interior/exterior surfaces. Offers superior performance and creates smooth, consistent finish with outstanding efficiency. Can be floor, wall or ceiling mounted for layout flexibility.

Payload
5.0 kg
Controller
DX200-FM
Horizontal Reach
727 mm
Vertical Reach
1290 mm
Axes
6
Download Model Brochure

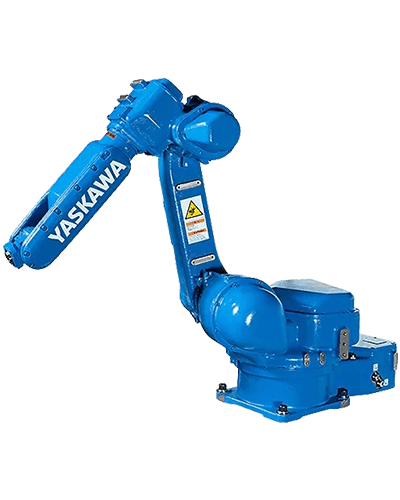

MPX1400

MPX1400

Model

Optimized for painting smaller components, the six-axis MPX1400 robot offers outstanding performance for coating and dispensing applications. Factory Mutual (FM) approved for Class I, Div. 1 use in hazardous environments.

Payload
5.0 kg
Controller
DX200-FM
Horizontal Reach
1256 mm
Vertical Reach
1852 mm
Axes
6
Approvals
Factory Mutual Class I Div. 1

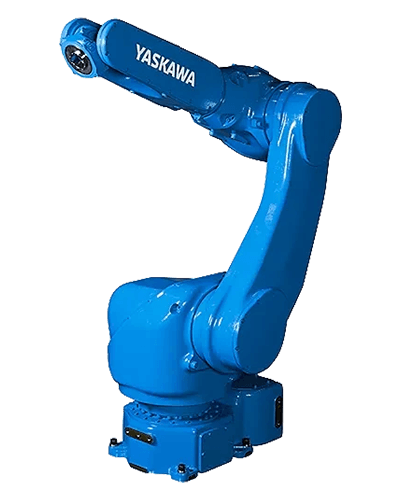

MPX1950

MPX1950

Model

Optimized for painting small- to medium-sized parts and dispensing applications, the high speed six-axis MPX1950 robot creates a smooth, consistent finish. A small footprint and slim arm design allow for minimum installation space.

Payload
7.0 kg
Controller
DX200
Horizontal Reach
1450 mm
Vertical Reach
2730 mm
Axes
6

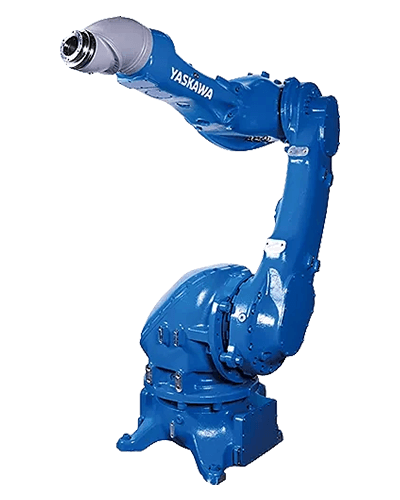

MPX2600

MPX2600

Model

High-speed, compact six-axis robot ideal for painting contoured parts. Its hollow wrist design has an inside diameter of 70 mm, making it well-suited for mounting spray equipment applicators. Can be floor, wall or ceiling mounted.

Payload
15.0 kg
Controller
DX200
Horizontal Reach
2000 mm
Vertical Reach
3643 mm
Axes
6
Wrist Inner Diameter
70 mm

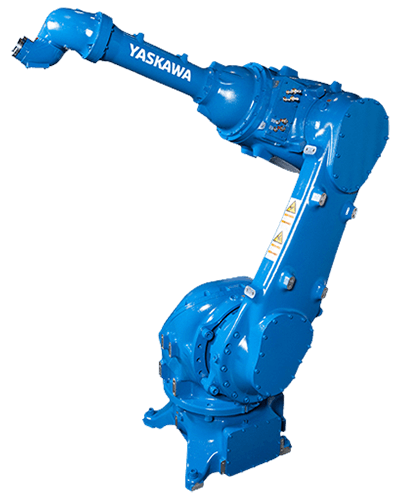

MPXL2600

MPXL2600

Model

Six-axis robot providing smooth, consistent finishes with outstanding efficiency. Available with a lemma wrist, inside diameter of 70 mm. Factory Mutual approved for Class I, Div. 1 hazardous environments.

Payload
10.0 kg
Controller
DX200-FM
Horizontal Reach
2100 mm
Vertical Reach
3844 mm
Axes
6
Wrist Inner Diameter
70 mm
Approvals
Factory Mutual Class I Div. 1

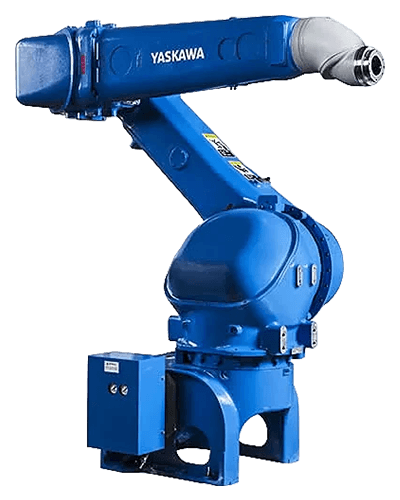

MPX3500

MPX3500

Model

High-speed, compact six-axis robot ideal for painting contoured parts. Hollow wrist design (70 mm inside diameter) for spray equipment. Offers superior performance and creates smooth, consistent finish with outstanding efficiency.

Payload
15.0 kg
Controller
DX200
Horizontal Reach
2700 mm
Vertical Reach
5095 mm
Axes
6
Wrist Inner Diameter
70 mm

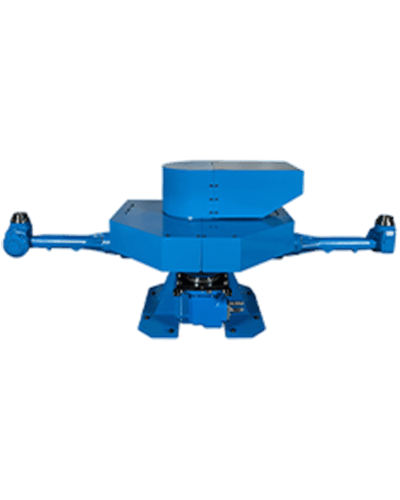

Motofeeder

Motofeeder

Model

High-quality painting package easily automates painting of large, complex workpieces.

Arm Reach
2600 mm table pitch

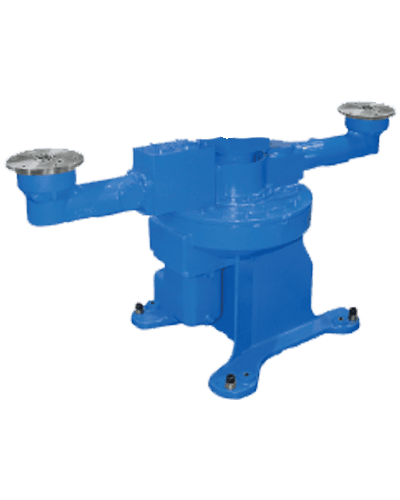

Motofeeder II

Motofeeder II

Model

High-quality painting package easily automates painting of large, complex workpieces.

Arm Reach
2600 mm table pitch
