E-ROBOT+3
E-ROBOT+3 Series ensures that you always get the same quality, fast and precise painted products. It increases production efficiency and saves energy and paint.
Models (4)
E-ROBOT+3 X
ModelHorizontal axis coating robot for automatic guns. Performs forward and backward movements precisely and efficiently. Timing belt and special chassis design offers long-lasting use and easy maintenance.
- Axis
- Horizontal
- Stroke Lengths
- 1000–1500 mm
- Load Capacity
- up to 50 kg
- Operating Modes
- Oscillation and Position
- Compatible
- E-SENSE+3
- Features
- Remote adjustment, counterweight balance, homogeneous painting results
E-ROBOT+3 Z
ModelVertical axis coating robot for automatic guns. Delivers high-efficiency painting with precise vertical movement. Timing belt design provides long-lasting use and easy maintenance.
- Axis
- Vertical
- Stroke Lengths
- 1200–2700 mm
- Load Capacity
- up to 50 kg
- Operating Modes
- Oscillation and Position
- Compatible
- E-SENSE+3
- Features
- Remote adjustment, counterweight balance, asynchronous motor
E-ROBOT+3 3D
ModelVertical axis painting robot with contour detection system. Works integrated with E-ROBOT+3 AXIS independent gun systems. Offers low maintenance requirements and high carrying capacity.
- Axis
- Vertical with contour detection
- Vertical Gun Spacing
- 130 mm
- Payload per Axis
- up to 14 kg
- Compatible
- E-SENSE+3 part detection
- Features
- Precise position and speed control, serial communication for monitoring

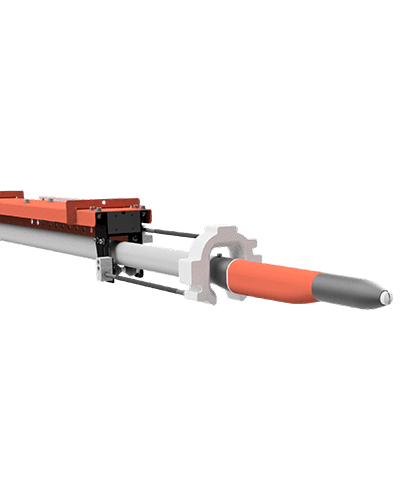

E-ROBOT+3 AXIS
ModelSingle gun movement system for parts with complex geometries requiring high precision and homogeneous coating quality. Servo motor and timing belt mechanism ensures smooth and repeatable movement.
- Type
- Single gun movement
- Gun Capacity
- Up to 8 guns via E-AXIS+3
- Drive
- Servo motor with timing belt
- Features
- Smooth/linear flow design, high repeatability, quiet operation, effective long and short stroke
