4-Ball Electric Pumps

E-Flo DC

Graco's E-Flo DC 4-Ball Electric pumps are ideal for small to medium circulation systems with outputs up to 2,000 cc per cycle.

Ask About This Product ← All GRACO Products

E-Flo DC

Product Details

EC1B41

EC1B41

Model

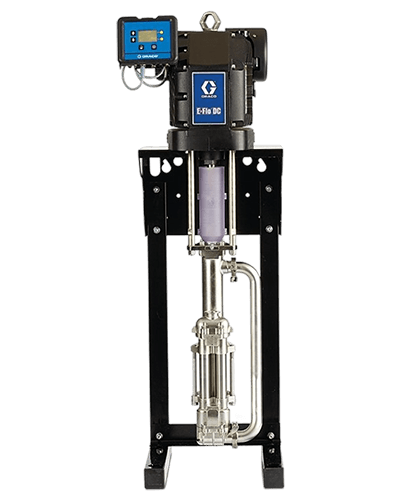

E-Flo DC 4-Ball Electric Circulation Pump, 750cc, 1 HP, 480V, Advanced, ATEX/FM/IECEx, Sealed Lower, Ultralife Rod/Cylinder, Tri-Clamp, Stand

Displacement: 750 cc
Power: 1 HP
Maximum Voltage: 480V AC
Maximum Working Pressure: 26 bar / 377 psi
Maximum Continuous Cycle Rate: 20 CPM
Fluid Inlet/Outlet: 1.5" Tri-Clamp
Certifications: ATEX/FM/IECEx
Weight: 112 kg
Dimensions (H×W×D): 1473 × 432 × 505 mm
