E-Flo DCi
Direct current (DC) electric piston pumps with intelligent (i) control supply high volume liquid finishing applications. With a 145 to 1,000 cc volume per cycle range, the supply pump's 2-ball lowers achieve 6:1 to 46:1 equivalent pressure ratios.
Models (6)
Y10BK0
ModelE-Flo DCi 2-Ball Electric Pump, 10:1, 1000cc, 3.7 kW (5 HP), 380-480 VAC 3 Phase, Carbon Steel Construction, Basic Controls, No Stand.
- Application
- Supply
- Compatible Material
- Solvent-borne, High Solids, Xirallic, CARC, Metallics
- Fluid Section Type
- 2-Ball
- Input Voltage (V AC)
- 380 - 480
- Material
- Carbon Steel
- Maximum Flow Rate (l/min)
- 20
- Maximum Working Pressure (psi)
- 1190
- Motor Type
- BLDC
- Output Per Cycle (cm³)
- 1000
- Type
- Electric Piston Pump

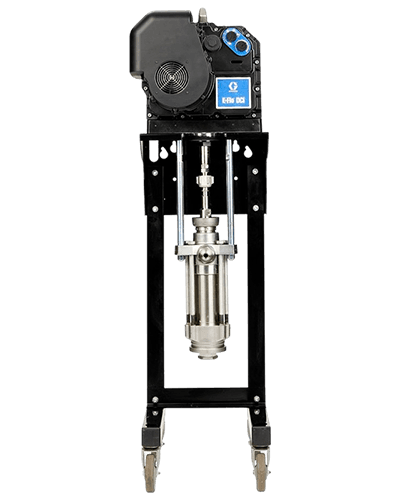

Y12BD1
ModelE-Flo DCi 2-Ball Electric Pump, 12:1, 580cc, 2.2 kW (3 HP), 380-480 VAC 3 Phase, Carbon Steel Construction, Basic Controls, Stand Mount.
- Application
- Supply
- Compatible Material
- Solvent-borne, High Solids, Xirallic, CARC, Metallics
- Fluid Section Type
- 2-Ball
- Input Voltage (V AC)
- 380 - 480
- Material
- Carbon Steel
- Maximum Flow Rate (l/min)
- 11.7
- Maximum Working Pressure (psi)
- 1190
- Motor Type
- BLDC
- Output Per Cycle (cm³)
- 580
- Type
- Electric Piston Pump
YD4581
ModelE-Flo DCi 4-Ball Electric Pump, 1500cc, 2.2 kW (3 HP), 380-480 VAC 3 Phase, SST Chrome Lower, Tri-Clamp, Stand.
- Application
- Circulation
- Compatible Material
- Solvent-borne, Xirallic, Metallics, Varnish, CARC, Water-borne
- Fluid Section Type
- Sealed 4-Ball
- Input Voltage (V AC)
- 380 - 480
- Material
- Stainless Steel
- Maximum Flow Rate (l/min)
- 98
- Maximum Working Pressure
- 31 bar / 450 psi
- Output Per Cycle (cm³)
- 1500
- Type
- Electric Piston Pump

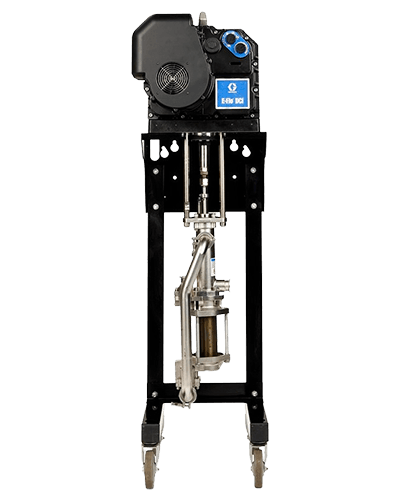

YB3541
ModelE-Flo DCi 4-Ball Electric Pump, 2000cc, 2.2 kW (3 HP), 380-480 VAC 3 Phase, SST Ultralife Lower, Tri-Clamp, Stand.
- Application
- Circulation
- Compatible Material
- Solvent-borne, Xirallic, Metallics, Varnish, CARC, Water-borne
- Fluid Section Type
- Sealed 4-Ball
- Input Voltage (V AC)
- 380 - 480
- Material
- Stainless Steel
- Maximum Flow Rate (l/min)
- 40
- Maximum Working Pressure
- 24 bar / 350 psi
- Output Per Cycle (cm³)
- 2000
- Type
- Electric Piston Pump
YB4491
ModelE-Flo DCi 4-Ball Electric Pump, 3000cc, 3.7 kW (5 HP), 380-480 VAC 3 Phase, SST Ultralife Lower, Tri-Clamp, SiNi, Stand.
- Application
- Circulation
- Compatible Material
- Solvent-borne, Xirallic, Metallics, Varnish, CARC, Water-borne
- Fluid Section Type
- Sealed 4-Ball
- Lower Type
- Sealed with SiNi
- Input Voltage (V)
- 380-480 VAC
- Material
- Stainless Steel
- Maximum Flow Rate (l/min)
- 60
- Maximum Working Pressure
- 28 bar / 400 psi
- Output Per Cycle (cm³)
- 3000
- Weight (kg)
- 116

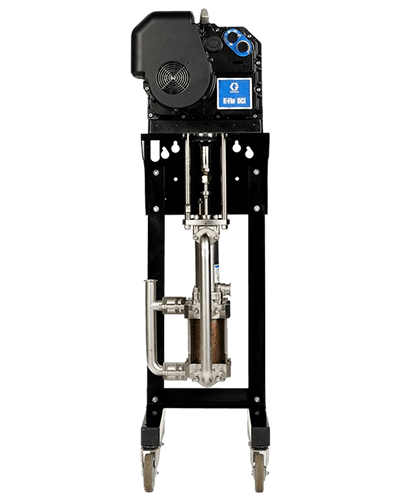

YD3341
ModelE-Flo DCi 4-Ball Electric Pump, 4000cc, 3.7 kW (5 HP), 380-480 VAC 3 Phase, SST Ultralife Lower, Tri-Clamp, Stand.
- Application
- Circulation
- Compatible Material
- Solvent-borne, Xirallic, Metallics, Varnish, CARC, Water-borne
- Fluid Section Type
- Sealed 4-Ball
- Input Voltage (V AC)
- 380 - 480
- Material
- Stainless Steel
- Maximum Flow Rate (l/min)
- 80
- Maximum Working Pressure
- 20.7 bar / 300 psi
- Output Per Cycle (cm³)
- 4000
- Type
- Electric Piston Pump
