Metering & Dispensing Systems

E-Flo iQ

The new E-Flo iQ system is a single-component metering and dispensing solution that greatly simplifies robotic application of sealants and adhesives.

Ask About This ProductDownload Product Line Brochure← All GRACO Products
E-Flo iQ

Models (2)

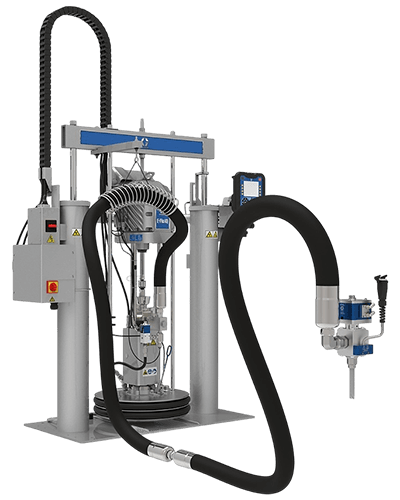

26B544

26B544

Model

Single E-Flo iQ System for Urethanes, Check-Mate 200cc, Heated 55 Gal., D200s, 15 ft hose

Flow Rate
0.01–5.0 L/min
Maximum Fluid Temperature
70°C
Maximum Fluid Viscosity
3,000,000 cP
Maximum Working Pressure
240 bar / 3500 psi
Communication
EtherNet/IP, PROFINET, PROFIBUS, DeviceNet
Type
Single Metering System

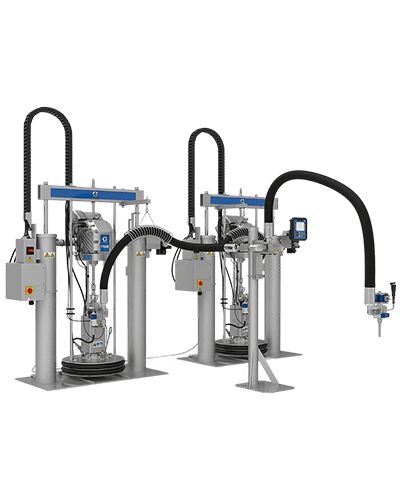

26B560

26B560

Model

Tandem E-Flo iQ System for Urethanes, Check-Mate 200cc, Heated 55 Gal., D200s, two 20 ft hoses, 20 ft hose

Flow Rate
0.01–5.0 L/min
Maximum Fluid Temperature
70°C
Maximum Fluid Viscosity
3,000,000 cP
Maximum Working Pressure
240 bar / 3500 psi
Communication
EtherNet/IP, PROFINET, PROFIBUS, DeviceNet
Type
Tandem Metering System
