AODD Pumps

HUSKY

Graco's Husky air operated diaphragm pumps feature corrosion-resistant fluid paths, which make them ideal for corrosive and abrasive chemicals and solvents. Husky diaphragm pumps can be configured to meet abrasion, temperature and chemical compatibility requirements. Also, they stall against pressure and achieve high flow rates, while minimizing air consumption and operational noise.

Ask About This Product Download Product Line Brochure ← All GRACO Products

Models (8)

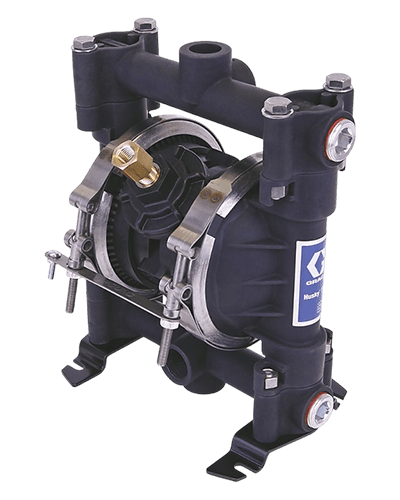

241906

Model

Husky 716 Series Air-Operated Double Diaphragm Transfer Pump for Oil Evacuation/Transfer, Water, Antifreeze, Windshield Wash Fluid

Maximum Flow Rate: 60.6 L/min
Maximum Fluid Pressure: 100 psi (7 bar)
Air Inlet: 1/4" NPT
Fluid Ports: 3/4" NPT
Materials: Aluminum, Buna-N, PTFE
Operating Temp: 4–82°C
Maximum Solid Size: 2.4 mm
Maximum Cycle Rate: 400 cpm

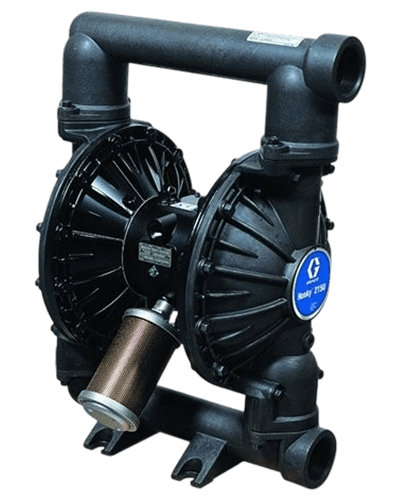

DF3311

Model

Husky 2150 — air operated diaphragm pump features a stall-free low pulsation air valve which provides a smooth and rapid changeover.

Maximum Flow Rate: 568 L/min
Maximum Fluid Pressure: 120 psi (8 bar)
Air Inlet: 1/2" NPT
Fluid Ports: 2" NPT
Materials: Aluminum, Stainless Steel, PTFE/EPDM
Operating Temp: up to 82°C
Maximum Solid Size: 6.35 mm
Standards: ATEX, CE

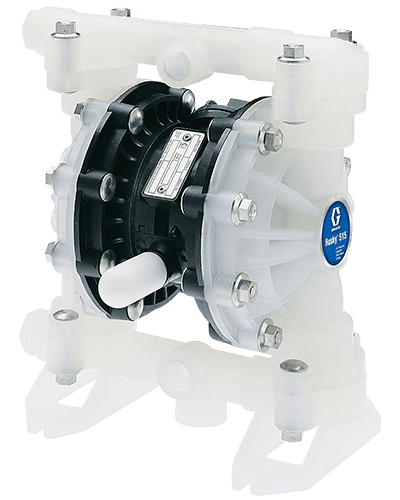

D52311

Model

Husky 515 PP 1/2 in NPT Standard Pump, PP Centre Section, SS Seats, PTFE Balls & PTFE Diaphragm

Maximum Flow Rate: 57 L/min
Maximum Fluid Pressure: 100 psi (7 bar)
Fluid Ports: 1/2" NPT
Air Inlet: 1/4" NPT
Materials: Polypropylene, PTFE, Stainless Steel seats
Operating Temp: 4–66°C
Maximum Solid Size: 2.4 mm
Standards: ATEX, CE

D52911

Model

Husky 515 PP 13 mm NPT Standard Pump, PP Centre Section, PP Seats, PTFE Balls & PTFE Diaphragm

Maximum Flow Rate: 57 L/min
Maximum Fluid Pressure: 100 psi (7 bar)
Fluid Ports: 1/2" NPT
Air Inlet: 1/4" NPT
Materials: Polypropylene with PTFE/EPDM diaphragm
Operating Temp: 4–66°C
Standards: ATEX, CE

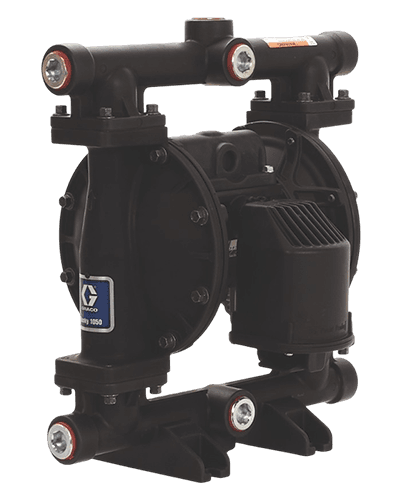

647666

Model

Husky 1050 AL 25.4 mm (1 in.) NPT Pump, Standard AL Centre Section, TPE Seats, AC Balls & TPE Diaphragm

Maximum Flow Rate: 189 L/min
Maximum Fluid Pressure: 125 psi (8.6 bar)
Fluid Ports: 1" NPT
Air Inlet: 1/2" NPT
Materials: Aluminum, TPE diaphragm, Acetal balls
Operating Temp: up to 66°C
Maximum Solid Size: 3.175 mm
Standards: ATEX, CE

647018

Model

Husky 1050 AL 25.4 mm (1 in.) NPT Pump, AL Centre Section, SS Seats, SS Balls & PTFE Diaphragm

Maximum Flow Rate: 189 L/min
Maximum Fluid Pressure: 125 psi (8.6 bar)
Fluid Ports: 1" NPT
Air Inlet: 1/2" NPT
Materials: Aluminum, Stainless Steel 316 balls, PTFE/EPDM diaphragm
Operating Temp: up to 104°C
Maximum Solid Size: 3.175 mm
Standards: ATEX, CE

652036

Model

Husky 3300 (ANSI/DIN/NPT) Al Pump, AL Centre Section with BN Seals, SP Seats, SP Balls & SP Diaphragm

Maximum Flow Rate: 1136 L/min
Maximum Fluid Pressure: 125 psi (8.6 bar)
Fluid Ports: 3" NPT
Air Inlet: 3/4" NPT
Materials: Aluminum, Santoprene seals/diaphragm
Operating Temp: 0–82°C
Maximum Solid Size: 12.7 mm
Standards: ATEX, CE

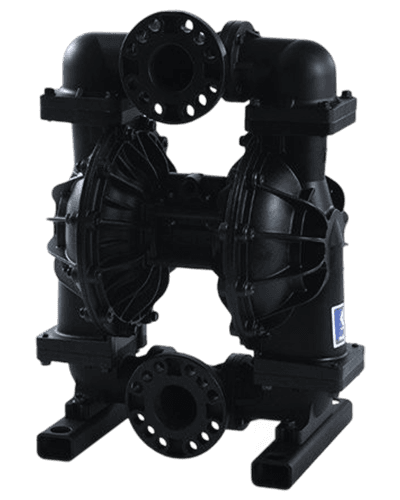

652046

Model

Husky 3300 (ANSI/DIN/NPT) AL Pump, AL Centre Section with BN Seals, GE Seats, GE Balls & GE Diaphragm

Maximum Flow Rate: 1136 L/min
Maximum Fluid Pressure: 125 psi (8.6 bar)
Fluid Ports: 3" NPT
Air Inlet: 3/4" NPT
Materials: Aluminum with G.E.T. seals/diaphragm
Operating Temp: 0–66°C
Maximum Solid Size: 12.7 mm
Standards: ATEX, CE
