Dispense Valves
iQ Dispense Valve
The iQ Tip Seal Dispense Valve offers high reliability for single component sealant and adhesive dispensing applications.
Product Details

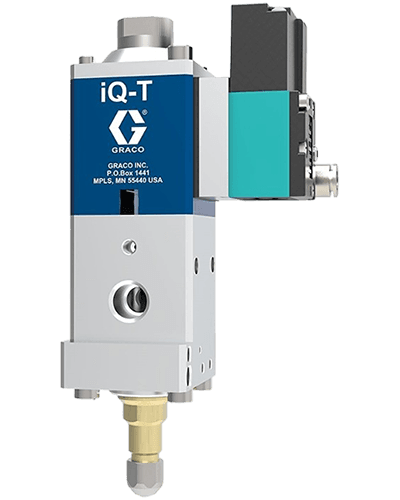

V25LT000BA
ModeliQ Dispense Valve, Tip-Seal, Ambient, 0.157 in (4.0 mm) Tip, 0 in (000 mm) Nozzle, Direct Mount Solenoid
- Air Inlet
- 5/16 in Push-to-Connect
- Fluid Inlet
- 1/4 in Female NPT
- Maximum Air Pressure
- 8.3 bar (120 psi)
- Maximum Fluid Pressure
- 276 bar (4000 psi)
- Solenoid Voltage
- 24V DC
- Nozzle Size
- 4.0 mm
- Weight
- 1.0 kg
- Materials
- Aluminum, stainless steel (17-4, 440C), PEEK, UHMWPE
