Electric Double Diaphragm Pumps

QUANTM

Designed to meet the growing demand for clean energy and sustainable technologies, QUANTM is the world's first (and only) affordable electric-operated double diaphragm (EODD) pump built to minimize energy consumption by cutting energy usage and costs by up to 80%.

Ask About This ProductDownload Product Line Brochure← All GRACO Products
QUANTM

Models (4)

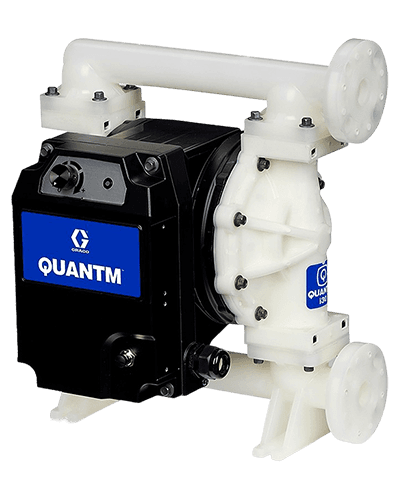

QUANTM i30

QUANTM i30

Model

The QUANTM i30 with 25.4 mm (1 IN) port is Graco's revolutionary new electric operated double diaphragm (EODD) pump that provides the ideal solution for factories or manufacturing plants focused on meeting sustainability goals by reducing their largest variable cost: energy.

Application
Chemical Processing, Paints & Coatings, Waste Water, General Fluid Transfer
Maximum Fluid Pressure (psi)
100
Flow
30 gpm (115 lpm)
Port Size
1 in (25.4 mm)

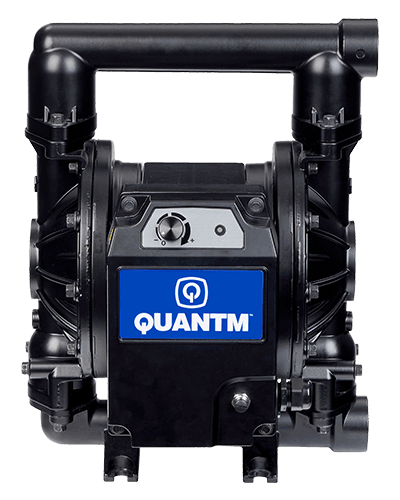

QUANTM i80

QUANTM i80

Model

The QUANTM i80 with 38.1 mm (1 1/2 IN) port is Graco's revolutionary new electric-operated double diaphragm (EODD) pump. With a lighter weight and smaller footprint than other electric options, it provides the ideal solution for factories or manufacturing plants focused on meeting sustainability goals.

Application
Chemical Processing, Paints & Coatings, Waste Water, General Fluid Transfer
Maximum Fluid Pressure (psi)
100
Flow
80 gpm (300 lpm)
Port Size
1.5 in (38.1 mm)

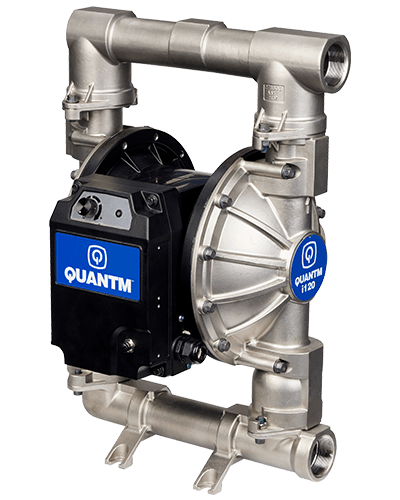

QUANTM i120

QUANTM i120

Model

The QUANTM i120 with 50.8 mm (2 IN) port is Graco's revolutionary new electric-operated double diaphragm (EODD) pump.

Application
Chemical Processing, Paints & Coatings, Waste Water, General Fluid Transfer
Maximum Fluid Pressure (psi)
60
Flow
120 gpm (450 lpm)
Port Size
2 in (50.8 mm)

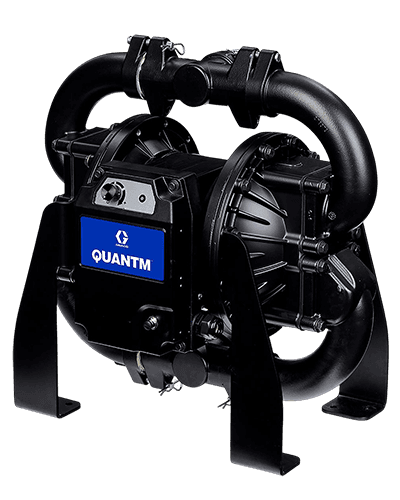

QUANTM i120LP

QUANTM i120LP

Model

The QUANTM i120LP with 2 in. (51 mm) porting combines Graco's revolutionary new electric operated double diaphragm (EODD) pump with proven flap-valve reliability. Providing the perfect solution for customers focused on meeting sustainability goals while offering the ability to move line-sized solids.

Application
Chemical Processing, Paints & Coatings, Waste Water, General Fluid Transfer
Maximum Fluid Pressure (psi)
60
Flow
120 gpm (450 lpm)
Port Size
2 in (51 mm)
